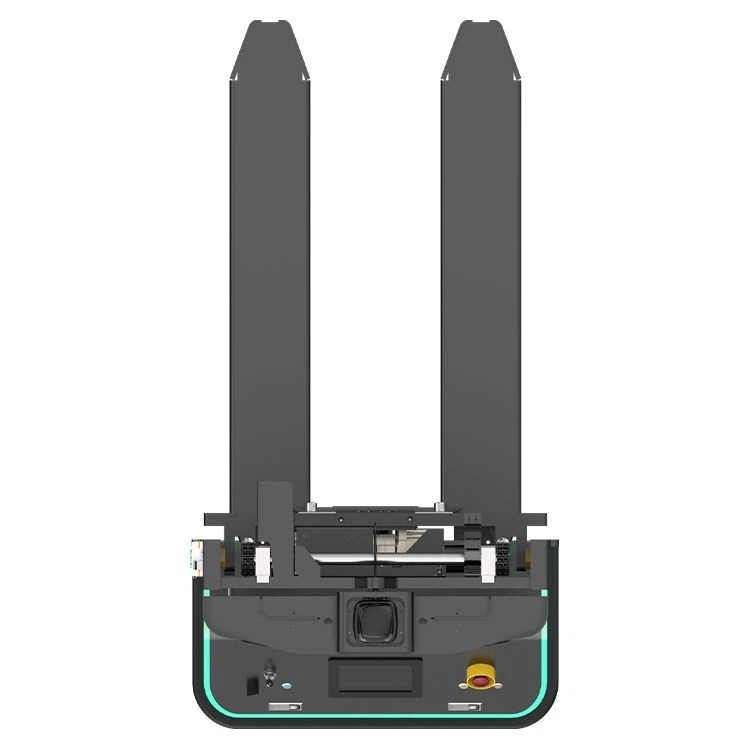

3000mm Forklift AMR Robot
3000mm forklift amr robot is a stacking unmanned forklift with a 3000mm lifting capacity. This high-bay automated forklift offers SLAM or laser navigation options to suit operational environments.
Features
3000mm forklift amr robot is a stacking unmanned forklift with a 3000mm lifting capacity. This high-bay automated forklift offers SLAM or laser navigation options to suit operational environments.
Products Description
As a Skybridge Robot flagship solution, the 3000mm forklift amr robot accesses high-level racking without infrastructure modifications. It automates pallet handling and high-stack transportation with full operational autonomy.
Specifications
|
Model |
R5-D1 |
|
Forklift |
Stacking type |
|
Dimension |
L1653*W856*H2295 (mm) |
|
Fork size |
1150*188*55 (mm) |
|
Fork outside distance |
570mm / 680mm |
|
Max load capacity |
1000kg |
|
Truck weight(battery included) |
600kg |
|
Turning radius |
1350mm |
|
Lifting height |
3000mm |
|
Pallet type |
Two-way Entry |
|
Pallet size |
1200*1000mm / 1100*1100mm |
|
Navigation mode |
SLAM navigation /Laser positioning navigation |
|
Navigation accuracy |
±10mm |
|
Stop accuracy |
±10mm |
|
Stop angle accuracy |
±1° |
|
Moving direction |
Forward , backward , rotate |
|
Drive mode |
Single Steering Wheel Drive |
|
Acceleration |
0.35 m/s² |
|
Max moving speed |
1.2 m/s |
|
Max climbing capability |
≤3° |
|
Battery type |
Lithium battery |
|
Charging mode |
Side charging |
|
Charging time |
Charging time after full discharging≤1H |
|
Rated endurance |
6H |
|
Communication Method |
WiFi / 5G |
|
Safety warning |
●Light warning ●Voice broadcast |
|
Safe sensing range |
≤3m adjustable |
|
Safety protection |
●Front and rear obstacle detection sensor |
|
Fork protection |
Mechanical Collision + Photoelectric Sensors |
|
Working temperature |
-10℃~45 |
|
Working environment |
No dust, no flammable / explosive / corrosive gases |
Product Cases
Project Case: BYD Auto Parts - Headlight Factory Raw Material Automation
Application Scenario: Automotive Components - AGV Material Handling for Headlight Production
Core Functionality: The 3000mm forklift amr robot retrieves material pallets from racks. Using vision-assisted positioning, it lifts pallets to 3-meter heights for precise storage. Subsequently, AGVs deliver elevated pallets to ground-level stations where operators:
- Transfer components to racks
- Scan materials into WMS via PDAs
- Dispatch AGVs for automated warehousing
Project Key Advantages:
- Operating Cost Reduction: 3000mm lifting capacity eliminates manual handling costs while reducing material damage during transport.
- Enhanced Logistics Efficiency: Automated intelligent material transfer accelerates flow rates and boosts production line throughput by 35-50%.
- Data-Driven Management: Real-time inventory synchronization enables material-traceable decision support.
