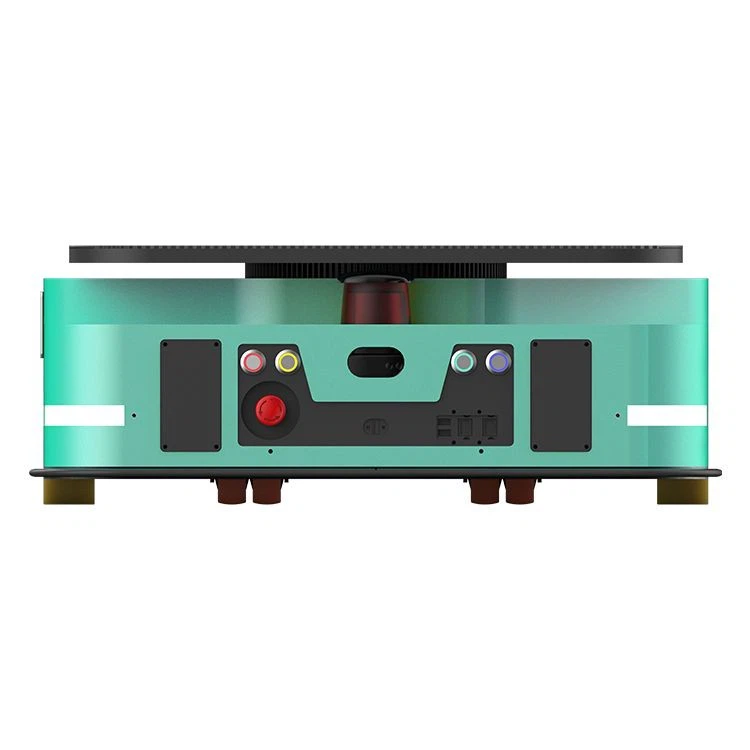

Lifting AGV Slam
Lifting agv slam is an underride lifting AGV featuring dual-wheel differential drive. With 1000kg payload capacity and SLAM/QR code dual-navigation, it achieves ±5mm docking precision. Its compact design enables forward/reverse/rotational maneuverability.
Features
Lifting agv slam is an underride lifting AGV featuring dual-wheel differential drive. With 1000kg payload capacity and SLAM/QR code dual-navigation, it achieves ±5mm docking precision. Its compact design enables forward/reverse/rotational maneuverability.
Products Description
As a Skybridge Robot flagship product, lifting agv slam maneuvers beneath racks/carts upon system command, lifting and transporting materials. Multiple units form dynamic assembly lines for flexible production across automotive, lithium battery, logistics, solar, and 3C semiconductor industries.
Specifications
|
Model |
R2-22B |
|
Dimension |
L940*W650*H253 (mm) |
|
Max payload |
1000kg |
|
Weight |
150kg |
|
Rotation Diameter |
1087mm |
|
Relative Rotation |
YES |
|
Size of Lifting Platform |
860*600mm |
|
Max Lifting Distance |
60mm |
|
Navigation mode |
QR / SLAM |
|
Navigation accuracy |
±10mm / ±15mm |
|
Stop accuracy |
±5mm / ±10mm |
|
Stop Angle Accuracy |
±1° |
|
Moving direction |
Forward , backward , rotate |
|
Drive mode |
Two-wheel differential drive |
|
Acceleration |
0.5m/s² |
|
Max moving speed |
2m/s |
|
Max climbingcapability |
≤3° |
|
Battery type |
Lithium battery |
|
Charging mode |
Collision charging |
|
Charging time |
Charging time after full discharging≤1H |
|
Rated endurance |
4H |
|
Communication Method |
WiFi / 5G |
|
Safety warning |
●Light warning ●Voice broadcast |
|
Safe sensing range |
≤3m adjustable |
|
Safety protection |
●Obstacle detection sensor ahead |
|
Working temperature |
-10℃ ~ 45℃ |
|
Working Environment |
No dust, no flammable / explosive / corrosive gases |
Product Cases
Project Case: Toyota Tianjin Plant Automation Logistics
Application Scenario: Automotive Components - Door Line Assembly
Core Functionality: 11 lifting agv slam units + AGVS/PMS system replace traditional conveyors. AGVs transport door assemblies through workstations sequentially, enabling 24/7 flexible transfer with automated material calls.
Project Key Advantages:
- Space Optimization: Replaces overhead conveyors to free floor space and optimize workshop layouts.
- Enhanced Line Flexibility: Enables rapid workstation reconfiguration and output adjustments for dynamic production needs.
- Production Efficiency: 24/7 autonomous operation with intelligent traffic management ensures precise door transfer and sustained throughput.
