Towing AGV in Workshop

Towing agv in workshop is an underride traction AGV designed for in-plant material handling. It enables flexible production lines in automotive final assembly logistics and new energy battery pack line transfers.

Send Inquiry

Features

Products Description

Towing agv in workshop delivers cost efficiency, rapid deployment, and operational stability for automotive, lithium battery, 3C electronics, and general manufacturing logistics. It meets high-tempo production demands by replacing manual transport and reducing error rates.

Specifications

Model	R1-11B
Dimension	L1450W420H290 (mm)
Max payload	500kg / 1000kg
Weight	200kg
Turning radius	650mm
Navigation mode	Magnetic navigation
Navigation accuracy	±10mm
Stop accuracy	±10mm
Moving direction	Forward , turn left and right
Drive mode	Differential driving
Acceleration	0.2m/s²
Max moving speed	45m/min
Max climbing capability	≤3°
Battery type	Lithium battery
Charging mode	Side charging / Ground charging
Charging time	Charging time after full discharging≤1H
Rated endurance	8H
Communication Method	RF / WiFi / 5G
Safety warning	●Light warning ●Voice broadcast
Safe sensing range	≤3m adjustable
Safety protection	●Obstacle detection sensor ahead ●Mechanical anti-collision design ●Emergency stop switch
Working temperature	-10℃ ~ 45℃
Working Environment	No dust, no flammable / explosive / corrosive gases

Product Cases

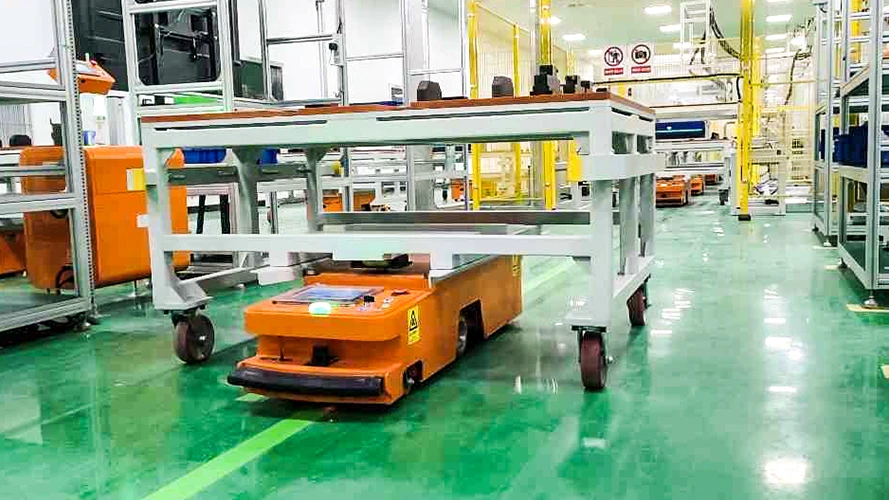

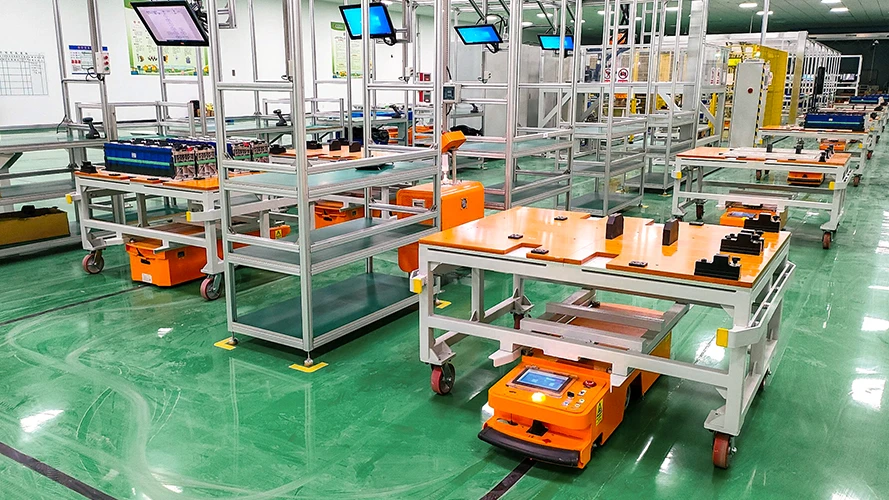

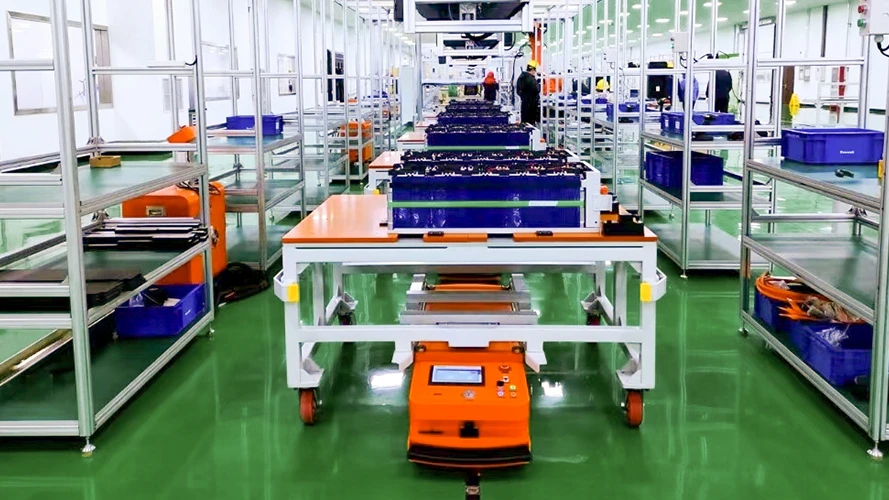

Project Case:CATL Energy Storage Battery Automation Logistics Project

Application Scenario: Energy Storage Industry – Battery Pack Assembly Line AGV Implementation

Core Functionality: Multiple towing agv in workshop units form a flexible pack assembly loop with magnetic navigation. AGVs transport battery packs via detachable fixture carts, automating raw material delivery and finished product transfer.

Project Key Advantages:

Intelligent Logistics Data: Real-time material flow tracking optimizes storage allocation, routing, and task distribution through full-process digitalization.
Reduced Material Damage: Minimizes handling losses and boosts first-pass yield rates. The flexible AGV-driven line enhances production scheduling agility.
